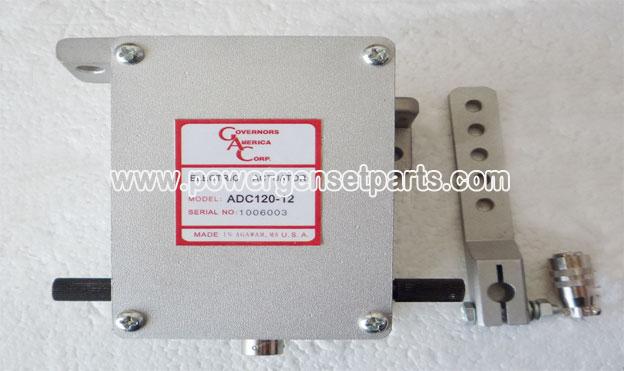

Product Name: GAC Actuator ADC120 12VDC,Engine Electronic Actuator ADC120 12VDC,GAC ADC120 12VDC,GAC Actuator

Product Description:
ADC120 12External Actuator, 12V Model;

We supply the following Electronic Actuators:
1)ADC120 12, ADC120 24
2)ADC225 12,ADC225 24
3)ACD175A 12,ACD175A 24

ADC120 12 Actuator:
SPECIFICATIONS

PERFORMANCE:
Available Torque Max1.0Lb-ft(1.4Nm)
Maximum Operating Shaft Angular Travel 25+1degree CW/CCW
POWER INPUT:
Operating voltage 12VDC
Normal Operating Current 2 A at 12VDC
1 A at 24VDC
Maximum CurrentContinuously Rated 6 A at 12VDC
3 A at 24VDC

ENVIROMENTAL:
Temperature Range -54 to 95
Relative Humidity up to 100%
All Surface finishes Fungus proof and corrosion resistant

PHISICAL:
Weight 2.3 kg
Mounting Any position, electrical connector at the top preferred

RELIABILITY:
Vibration up to 20G @50-500 Hz
Testing 100% Tested

MATING HARDWARE
Connector Supplied With Actuator
Lever LE1500-2
Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)
BR101(Left Hand)
Wiring Harness HD120 4ft. harness supplied with actuator, other length available from Actuator
